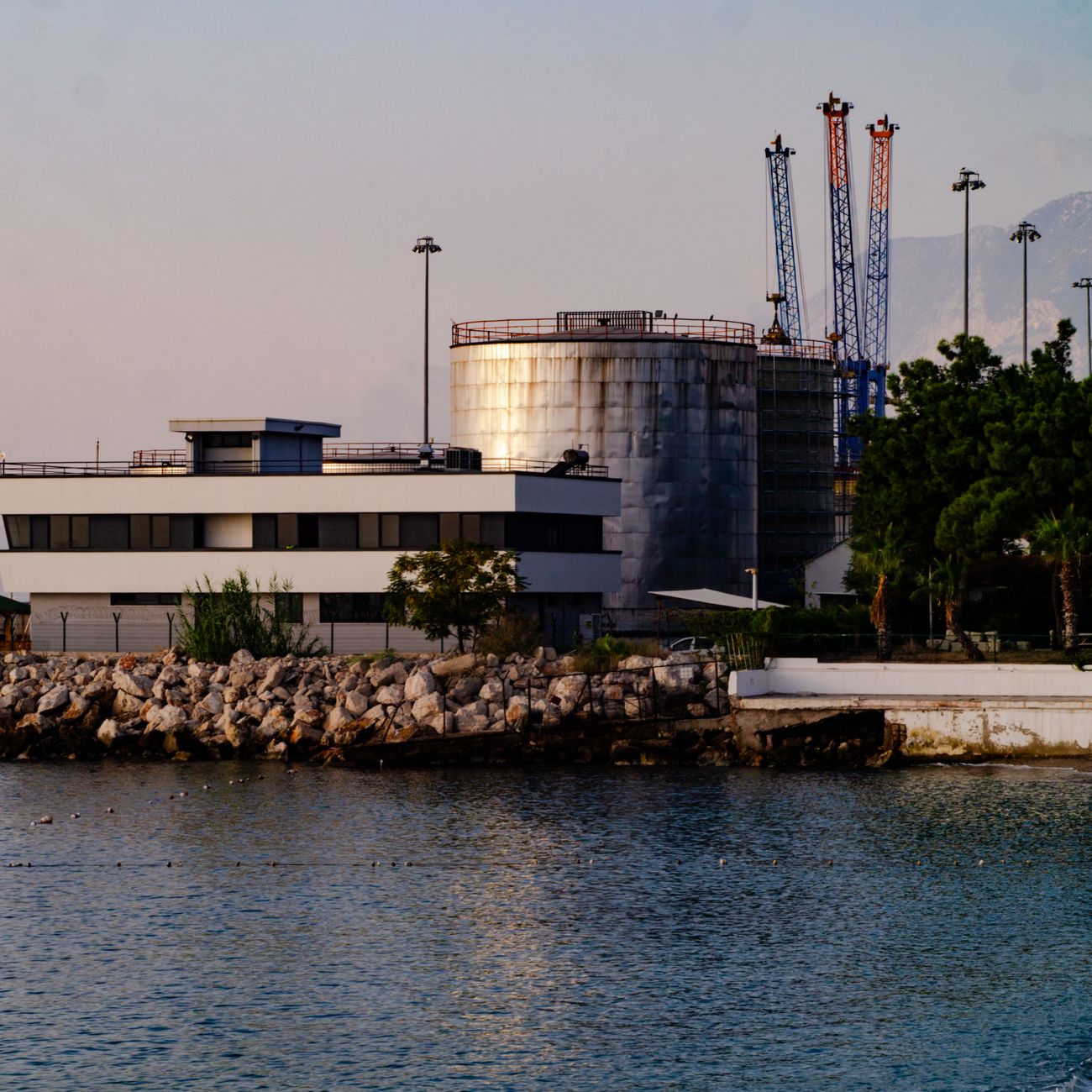

Petroleum Products Handling And Storage

API gravity is a fundamental measure used to compare the density of petroleum liquids with that of water. It is expressed in degrees and is calculated from the specific gravity of the product at 60°F. A higher API gravity indicates a lighter, less dense product, while a lower value denotes a heavier, more viscous material. For example, gasoline typically has an API gravity between 70 and 80, whereas heavy fuel oil may be below 15. Understanding API gravity helps operators select appropriate storage tank types, handling equipment, and safety precautions because lighter products generate more vapor and may require stricter vapor recovery controls.

Viscosity describes a fluid’s resistance to flow and is measured in centistokes (cSt) at a specified temperature, usually 40°C or 100°C. Low‑viscosity products such as diesel fuel flow readily through pipelines and loading arms, while high‑viscosity materials like bitumen demand pre‑heating or agitation to move. In a tank farm, viscosity influences pump selection, pipe sizing, and the design of heating systems. A practical challenge arises when a product’s viscosity changes with temperature; operators must monitor ambient conditions and adjust heating rates to avoid blockages during transfer operations.

Flash point is the lowest temperature at which a liquid releases enough vapour to form an ignitable mixture with air. It is a critical safety parameter used to classify products into flammable, combustible, or non‑flammable categories. For instance, gasoline has a flash point of around –45°C, making it highly flammable, whereas diesel fuel’s flash point is typically above 52°C. Knowledge of flash point guides the implementation of fire protection measures, such as the selection of appropriate foam types, the design of fire‑water spray systems, and the determination of safe working distances for personnel during loading and unloading.

Boiling point refers to the temperature at which a liquid’s vapour pressure equals atmospheric pressure, causing the liquid to vaporize. In petroleum handling, the boiling point distribution of a product determines its volatility profile and influences vapor recovery strategies. Light ends with low boiling points, such as propane and butane, require specialized storage in pressurized containers or refrigerated tanks, while heavy fractions with high boiling points can be stored at ambient temperature with minimal vapor generation. Practical applications include using distillation columns to separate products based on boiling point ranges, thereby creating market‑specific grades.

Specific gravity is the ratio of a fluid’s density to that of water at a defined temperature, usually 4°C. It is directly related to API gravity and is used in tank gauging calculations to convert volume measurements into mass. Accurate specific gravity data enable precise inventory reconciliation, which is essential for financial reporting and regulatory compliance. A common challenge is the variation of specific gravity with temperature; therefore, operators employ temperature‑compensated density meters or apply correction factors to maintain accuracy.

Density is the mass per unit volume of a product, typically expressed in kilograms per cubic meter (kg/m³). Density influences the design of containment structures, the sizing of loading arms, and the selection of pump capacities. For example, a tank designed for a product with a density of 800 kg/m³ may be unsuitable for a heavier product at 950 kg/m³ without structural reinforcement. Operators often rely on calibrated density meters and periodic laboratory analysis to verify product specifications.

Fixed‑roof tank is a conventional storage vessel with a permanent, rigid roof that sits directly on the tank shell. This type of tank is suitable for storing low‑volatility products such as diesel, fuel oil, and lubricating oil. Fixed‑roof tanks provide excellent protection against precipitation and reduce the risk of vapor loss, but they are not ideal for highly volatile liquids because vapors can accumulate in the headspace. In practice, fixed‑roof tanks are frequently equipped with venting systems, pressure relief devices, and inert gas blankets to manage headspace vapors safely.

Floating‑roof tank is designed with a roof that floats directly on the product surface, moving up and down with changes in liquid level. There are two principal variants: Internal floating roofs (IFR) and external floating roofs (EFR). IFRs are housed within the tank shell and provide a barrier that separates the product from the atmosphere, minimizing vapor emissions for volatile products like gasoline or jet fuel. EFRs sit atop the tank shell and are commonly used for storing large volumes of crude oil, where the roof floats on the product surface while the tank’s sidewalls remain exposed to the environment. A key operational challenge for floating‑roof tanks is the management of roof movement, which can cause wear on the sealing mechanisms and may lead to leaks if not properly maintained.

Internal floating‑roof (IFR) tanks combine the benefits of a floating roof with the structural protection of a fixed shell. The roof is supported by a series of ribs and slides on a bearing system. IFR tanks are especially advantageous for products with high vapor pressure because the floating roof reduces the vapor space, thereby lowering emissions. However, the sealing system must be regularly inspected for wear, and the tank must be equipped with a roof‑level monitoring system to detect any abnormal movement that could indicate a breach.

External floating‑roof (EFR) tanks are typically larger in capacity, ranging from several hundred thousand to millions of barrels. The roof is supported by a buoyancy system that allows it to float on the product surface while the tank’s sidewalls remain exposed. EFRs are vulnerable to environmental factors such as wind, rain, and temperature fluctuations, which can affect roof stability. Operators must implement robust roof‑level control devices and maintain a comprehensive inspection schedule to prevent roof collapse or excessive deformation.

Carbon steel is the most common material for constructing storage tanks due to its favorable strength‑to‑weight ratio and cost‑effectiveness. Carbon steel tanks are susceptible to corrosion, especially when storing water‑containing products or when exposed to atmospheric moisture. To mitigate corrosion, tank owners often apply protective coatings, implement cathodic protection systems, and conduct regular thickness measurements using ultrasonic testing. A practical example is the use of a sacrificial anode system, where zinc or magnesium anodes are installed to preferentially corrode and protect the steel shell.

Stainless steel offers superior corrosion resistance compared to carbon steel, making it suitable for storing aggressive chemicals, high‑purity products, or water‑sensitive fuels. Although the initial capital cost is higher, stainless steel tanks reduce long‑term maintenance expenses and minimize the risk of contamination. In a tank farm handling specialty chemicals, stainless steel may be the preferred material for tanks that store products with low pH or high chloride content, where carbon steel would deteriorate rapidly.

Alloy steel combines carbon steel with additional alloying elements such as nickel, chromium, or molybdenum to enhance strength and corrosion resistance. Alloy steel tanks are often employed for high‑pressure storage of liquefied petroleum gas (LPG) or for applications requiring superior toughness in low‑temperature environments. The selection of an appropriate alloy depends on the product’s chemical composition, operating temperature, and pressure conditions.

Corrosion is the degradation of metal caused by chemical or electrochemical reactions with the environment. In petroleum storage, corrosion can be accelerated by the presence of water, dissolved salts, acids, and microbes. Operators use a combination of protective coatings, cathodic protection, and regular inspection to manage corrosion risk. One of the most common challenges is the detection of under‑coating corrosion, which may not be visible until significant wall loss has occurred. Advanced techniques such as magnetic flux leakage (MFL) or guided wave ultrasonic testing are employed to locate hidden corrosion.

Cathodic protection is an electrochemical method that reduces corrosion by supplying a protective current to the metal structure. There are two main types: Galvanic (sacrificial anode) systems and impressed current systems. In a galvanic system, the anodes are made of a more reactive metal that corrodes preferentially, protecting the steel tank. Impressed current systems use an external power source to drive a protective current, allowing for precise control of the protection level. Proper design and regular monitoring of cathodic protection systems are essential to avoid over‑protection, which can cause hydrogen embrittlement in certain steels.

Inert gas system (IGS) supplies a non‑reactive gas, typically nitrogen, to the tank’s headspace to displace oxygen and prevent the formation of flammable vapor‑air mixtures. IGS is commonly used in tanks storing volatile products, such as gasoline, jet fuel, or chemicals that are prone to oxidation. The system includes gas generators, distribution piping, pressure regulators, and monitoring devices. A practical challenge is maintaining the correct inert gas pressure, especially during product transfers when the headspace volume changes rapidly.

Vapor recovery refers to the capture and treatment of vapors emitted during loading, unloading, or venting operations. Vapor recovery units (VRUs) condense or adsorb volatile organic compounds (VOCs) to reduce emissions and comply with environmental regulations. For example, a loading rack equipped with a VRU can recover gasoline vapors, compress them, and return the recovered liquid to the storage tank, thereby minimizing product loss and emissions. Operators must balance the recovery efficiency with the capital and operating costs of the VRU, and they must ensure that the system is properly maintained to avoid leaks.

Overfill protection is a critical safety feature that prevents the accidental filling of a tank beyond its design capacity. Overfill devices may include high‑level alarms, automatic shut‑off valves, or electronic control systems that monitor tank level sensors. In a typical scenario, a level transmitter detects that the product has reached 95 % of the tank’s usable volume, triggering an alarm and automatically closing the loading valve to prevent spillage. Overfill protection is especially important for floating‑roof tanks, where a roof‑level sensor may be required to detect excessive product rise that could submerge the roof.

Level measurement technologies are essential for accurate inventory management. Common methods include float‐type gauges, ultrasonic sensors, radar level transmitters, and capacitance probes. Float gauges are simple and inexpensive but may be unsuitable for high‑temperature or highly viscous products. Ultrasonic sensors emit sound waves that reflect off the product surface, providing a non‑contact measurement ideal for hazardous environments. Radar level transmitters use microwave pulses and are highly accurate, even in turbulent or foam‑filled tanks. Selecting the appropriate level measurement method depends on product properties, tank geometry, and safety considerations.

Pressure relief valve (PRV) is a safety device that releases excess pressure from a tank to prevent over‑pressurization, which could lead to rupture or catastrophic failure. PRVs are calibrated to open at a predetermined set pressure and reseat automatically when the pressure drops below the set point. In practice, a PRV may be installed on a tank storing LPG, where pressure fluctuations can be rapid due to temperature changes. Regular testing and maintenance of PRVs are required to ensure reliable operation, as a stuck valve can compromise the entire safety system.

Emergency shutdown (ESD) systems provide a rapid means to isolate a tank or a group of tanks in the event of an abnormal condition, such as fire, leak, or equipment failure. ESD circuits typically integrate with grounding, bonding, and valve actuation devices to cut off product flow, isolate electrical power, and initiate fire suppression. A well‑designed ESD system includes redundant communication paths, fail‑safe logic, and periodic functional testing. Operators must be trained to recognize alarm conditions and to execute the shutdown procedure promptly.

Product segregation is the practice of storing different petroleum grades in separate tanks or compartments to avoid cross‑contamination. Segregation is critical when handling products with distinct specifications, such as unleaded gasoline versus diesel, or when storing specialty chemicals alongside conventional fuels. Physical segregation can be achieved through dedicated tanks, internal partitions, or double‑bottom designs. In addition, procedural segregation, such as dedicated loading lines and dedicated pump sets, helps maintain product integrity. Failure to enforce segregation can result in costly re‑blending operations or product recalls.

Blending involves mixing two or more petroleum products to achieve a target specification, such as octane rating, sulfur content, or viscosity. Blending is performed either in the tank farm using dedicated blending tanks or in downstream facilities like refineries. Accurate blending requires precise volume measurement, reliable density data, and robust mixing equipment. An example of blending is the production of a gasoline blendstock by combining a high‑octane component with a lower‑octane base fuel to meet market specifications. Operators must monitor blending ratios continuously and document each batch to ensure compliance with quality standards.

Tank cleaning is a routine activity aimed at removing residual product, sludge, and contaminants from storage tanks. Cleaning methods include manual scraping, high‑pressure water jetting, steam cleaning, and chemical cleaning using solvents. Clean‑in‑place (CIP) systems automate the cleaning process by circulating cleaning agents, water, and air through the tank interior without dismantling the vessel. Effective tank cleaning prevents product contamination, reduces corrosion risk, and extends tank life. However, cleaning operations can generate hazardous vapors and wastewater, requiring proper ventilation, vapor recovery, and waste disposal procedures.

Steam cleaning is a common method for removing heavy residues from tanks that store high‑viscosity or waxy products. Steam is introduced into the tank, raising the temperature and softening the residue, which can then be flushed out. Operators must control steam pressure and temperature carefully to avoid over‑pressurizing the tank. In addition, the condensate generated during steam cleaning must be collected and treated to prevent environmental discharge of hydrocarbons.

Tank farm layout refers to the spatial arrangement of storage tanks, loading racks, pipelines, and auxiliary equipment within a site. An optimal layout minimizes product travel distances, reduces the risk of cross‑contamination, and facilitates safe access for inspection and maintenance. It also considers fire protection zones, drainage, and secondary containment. For instance, tanks storing highly flammable products are often placed on the periphery of the site with adequate firebreaks, while less hazardous products may be grouped in central areas. A well‑planned layout improves operational efficiency and enhances emergency response capabilities.

Fire protection systems are integral to tank farm safety. They include foam generation units, water spray systems, deluge valves, and fire‑water mains. Foam is particularly effective for hydrocarbon fires because it forms a blanket that suppresses vapor release. Water spray can be used for cooling tank walls and preventing fire spread. Design of fire protection must adhere to standards such as NFPA 30 and local regulations, taking into account the fire‑load of stored products, the size of the tanks, and the available water supply. Regular fire‑pump testing and foam concentrate analysis are essential to maintain readiness.

Environmental regulations govern emissions, spills, and waste handling in petroleum storage operations. Agencies such as the EPA, OHS, and local authorities enforce limits on volatile organic compound (VOC) emissions, mandate secondary containment, and require reporting of any releases. Compliance often involves installing vapor recovery systems, conducting regular leak detection surveys, and maintaining detailed records of product movements. Operators must stay abreast of evolving regulations, as non‑compliance can result in fines, operational shutdowns, or reputational damage.

Spill containment structures are designed to capture accidental releases of product, preventing environmental contamination. Typical containment solutions include berms, dikes, and double‑wall tanks. A double‑wall tank consists of an inner product‑holding shell and an outer protective shell, with a monitoring system to detect any leakage into the interstitial space. In addition, containment basins may be equipped with oil‑water separators to recover the spilled product for reuse. Proper design of containment structures must account for the maximum credible spill volume, local drainage conditions, and the compatibility of the containment material with the stored product.

Secondary containment is a broader concept that includes any barrier or system that provides an additional layer of protection beyond the primary tank wall. This may involve a concrete pad with a built‑in collection trench, a geotextile liner, or a prefabricated secondary tank. The purpose of secondary containment is to capture leaks, enable early detection, and provide time for corrective action before the product reaches the environment. Regular inspection of secondary containment integrity, including checking for cracks, erosion, or infiltration, is a key maintenance activity.

Leak detection technologies range from manual visual inspections to sophisticated electronic monitoring systems. Common methods include hydrostatic testing, ultrasonic leak detection, and pressure decay testing. Modern tank farms often employ continuous monitoring sensors that detect changes in tank pressure, temperature, or liquid level that may indicate a leak. For example, a pressure transducer connected to a data logger can alarm when a slow pressure drop exceeds a predetermined threshold, prompting immediate investigation. Early leak detection reduces product loss and mitigates environmental impact.

Loading and unloading operations are the core activities of a tank farm, involving the transfer of product to and from transport vessels such as trucks, railcars, barges, or pipelines. These operations require precise coordination, proper equipment selection, and strict adherence to safety procedures. Loading racks are equipped with swivel joints, loading arms, and grounding cables to prevent static discharge. Unloading may involve pump stations, filtration units, and product sampling stations. Operators must verify product identity, inspect equipment for damage, and ensure that all safety interlocks are functional before commencing a transfer.

Hose and coupler types vary according to product volatility, pressure, and temperature. For gasoline loading, flexible hose reels with stainless‑steel braiding and quick‑connect couplers are common. For high‑pressure LPG transfers, rigid steel hoses with high‑pressure fittings are required. Compatibility of the hose material with the product is essential to avoid degradation; for instance, certain solvents can attack rubber seals, leading to leaks. Regular inspection of hoses for wear, cracking, or corrosion is mandatory, and any damaged hose must be removed from service immediately.

Grounding and bonding are electrical safety measures that prevent static electricity buildup during product transfer. Grounding provides a low‑impedance path for stray currents to flow directly to earth, while bonding equalizes the electrical potential between different pieces of equipment. In practice, a loading arm is equipped with a grounding cable that connects to the tank’s earthing system, and all metal components are bonded together. Failure to properly ground and bond can result in dangerous sparks, which may ignite flammable vapors. Operators must routinely test ground resistance and inspect bonding straps for corrosion.

Static electricity can accumulate on the surface of moving liquids, especially when high‑speed flow or turbulence is present. The generated charge can be discharged as a spark if not properly mitigated. To reduce static buildup, flow rates are controlled, and anti‑static additives may be blended into the product. Additionally, equipment is designed with conductive materials, and flow paths are configured to minimize turbulence. Training personnel to recognize conditions that favor static generation is an important preventive measure.

Vapor pressure is the pressure exerted by a product’s vapor when it is in equilibrium with its liquid phase at a given temperature. High vapor pressure products, such as LPG, require pressurized storage and specialized venting arrangements to prevent excessive vapor release. Vapor pressure data are used to size pressure relief devices, design vent stacks, and select appropriate tank construction materials. Operators must monitor temperature closely because vapor pressure increases with temperature, potentially leading to over‑pressurization if not properly controlled.

Dew point indicates the temperature at which vapor begins to condense into liquid water. In petroleum storage, dew point is relevant for products that contain dissolved water, as condensation can lead to corrosion, microbial growth, and product degradation. A low dew point is desirable for fuels, and operators may employ dehydration units or add corrosion inhibitors to manage water content. Monitoring dew point during loading helps ensure that transferred product meets specification limits for water content.

Tank cleaning standards such as API 650, API 653, and NFPA 30 provide guidelines for the design, construction, inspection, and maintenance of storage tanks. API 650 specifies the requirements for new welded steel tanks, while API 653 addresses the inspection and repair of existing tanks. Compliance with these standards ensures structural integrity, safety, and longevity of the storage assets. For instance, API 653 mandates thickness measurements at regular intervals and prescribes repair criteria when wall loss exceeds a certain percentage of the original thickness.

Inspection regimes incorporate non‑destructive testing (NDT) techniques to assess tank condition without compromising its serviceability. Common NDT methods include ultrasonic thickness testing, magnetic particle inspection, radiographic testing, and visual examination with drones. Ultrasonic testing is widely used to measure remaining wall thickness, detecting corrosion or erosion. Magnetic particle inspection can reveal surface cracks in ferromagnetic materials. A comprehensive inspection program combines these techniques on a scheduled basis, typically annually for large tanks, and more frequently for those storing high‑risk products.

Maintenance activities encompass routine tasks such as lubrication of moving parts, replacement of seals, calibration of instrumentation, and cleaning of vent stacks. Preventive maintenance plans are developed based on manufacturer recommendations, regulatory requirements, and operational experience. Effective maintenance reduces unscheduled downtime, extends equipment life, and enhances safety. For example, periodic replacement of roof seals on floating‑roof tanks prevents vapor leaks and maintains the integrity of the vapor barrier.

Risk assessment is a systematic process to identify hazards, evaluate the likelihood of occurrence, and determine the severity of potential consequences. In a tank farm, risk assessments are performed for activities such as loading, unloading, tank cleaning, and routine inspection. The outcome guides the implementation of control measures, such as engineering controls, administrative procedures, and personal protective equipment (PPE). A typical risk assessment matrix categorizes risks as low, medium, or high, and assigns mitigation actions accordingly.

Hazard identification techniques include HAZOP (Hazard and Operability Study), FMEA (Failure Mode and Effects Analysis), and bow‑tie analysis. HAZOP focuses on deviations from design intent, examining parameters such as flow, temperature, and pressure. FMEA evaluates potential failure modes of equipment, estimating their impact on safety and production. Bow‑tie analysis visualizes the pathways from hazard to consequence, linking preventive and mitigative barriers. Conducting these studies early in the design phase and revisiting them during operation helps maintain a robust safety culture.

Process safety management (PSM) is a regulatory framework that governs the safe handling of highly hazardous chemicals. PSM requirements cover elements such as employee participation, process hazard analysis, mechanical integrity, and emergency planning. In the context of a tank farm, PSM ensures that all storage and transfer operations are performed under controlled conditions, with documented procedures and trained personnel. Compliance with PSM reduces the likelihood of catastrophic incidents and aligns the organization with best‑practice standards.

Emergency response plans outline the actions to be taken in the event of a fire, spill, explosion, or other incident. The plan includes notification protocols, evacuation routes, muster points, and responsibilities of key personnel. It also details the deployment of fire‑fighting equipment, spill containment kits, and first‑aid resources. Regular drills and tabletop exercises validate the effectiveness of the plan and identify areas for improvement. A well‑structured emergency response plan can significantly reduce the impact of an incident on personnel, the environment, and the business.

Training is essential for ensuring that staff understand the procedures, hazards, and equipment associated with petroleum handling. Training programs cover topics such as safe loading practices, grounding and bonding, fire‑fighter awareness, and the operation of vapor recovery units. Competency assessments, refresher courses, and certification tracking help maintain a high level of proficiency. Practical, hands‑on training sessions, such as mock loading operations, reinforce theoretical knowledge and improve confidence.

Documentation provides a permanent record of all activities, inspections, maintenance, and incidents. Key documents include tank certificates, inspection reports, calibration logs, safety data sheets (SDS), and operating manuals. Accurate documentation supports regulatory compliance, facilitates audits, and enables traceability of product movements. Electronic document management systems (EDMS) streamline the storage and retrieval of records, and can integrate with SCADA systems to automatically capture data from sensors and control devices.

Product traceability ensures that the origin, movement, and quality of each batch of product can be tracked throughout its lifecycle. This is achieved through barcoding, RFID tags, and integrated inventory management software. Traceability is vital for meeting contractual specifications, managing recalls, and complying with regulatory reporting. For example, a refinery may require proof that a specific batch of jet fuel originated from a certified source, and that it was stored under controlled temperature conditions throughout its handling.

Inventory management involves the accurate accounting of product volumes, densities, and mass within the tank farm. It relies on precise level measurement, temperature correction, and density determination to convert apparent volume to true mass. Inventory reconciliation compares the recorded inventory against the sum of inbound and outbound transfers, identifying any discrepancies that may indicate measurement errors, leaks, or theft. Automated inventory systems can generate daily reports, flag anomalies, and support financial reporting.

Tank gauging is the process of determining the quantity of product in a tank. Methods include manual sounding, which uses a calibrated tape, and automated systems that employ radar, ultrasonic, or capacitance sensors. Automated gauging provides continuous data, reduces human error, and improves safety by eliminating the need for personnel to enter confined spaces. However, automated gauges must be calibrated regularly and validated against known reference points to maintain accuracy.

Product compatibility refers to the ability of two or more substances to be stored together without adverse chemical reactions. Incompatible products can cause corrosion, foaming, or the formation of hazardous compounds. Compatibility charts are used to determine which products can share a tank or be transferred through the same pipeline. For example, storing a high‑sulfur fuel oil in a tank previously used for a low‑sulfur product may require thorough cleaning to avoid cross‑contamination. Understanding compatibility prevents equipment damage and ensures product quality.

Corrosion inhibitors are chemical additives that reduce the rate of metal corrosion by forming a protective film on the surface. They are commonly used in water‑containing fuels, such as diesel, to prevent rust formation in storage tanks and pipelines. The selection of an inhibitor depends on the product composition, temperature, and exposure conditions. Inhibitor effectiveness is monitored through periodic sampling and analysis, ensuring that the concentration remains within the recommended range.

Water separation is a critical step in refining and storage to remove water from petroleum products. Water can cause corrosion, microbial growth, and reduced fuel performance. Separation techniques include gravity separators, centrifuges, and electrostatic coalescers. In a tank farm, a water‑oil separator may be installed on the product discharge line to capture water before the product is transferred to downstream facilities. Operators must monitor separator efficiency and perform regular maintenance to prevent overflow and ensure reliable operation.

Oil‑water separator devices are designed to exploit the density difference between oil and water, allowing the two phases to separate in a controlled environment. The separated water is usually collected for treatment or disposal, while the oil proceeds to the next processing stage. An oil‑water separator can be a simple gravity‑driven tank with a baffle system, or a more complex centrifuge that accelerates separation. Proper sizing of the separator is essential to handle the expected water content and flow rate without causing product hold‑up.

Tank farm automation utilizes advanced control systems to monitor and manage storage, transfer, and safety functions. Automation components include Supervisory Control and Data Acquisition (SCADA) platforms, Programmable Logic Controllers (PLC), and remote I/O modules. These systems collect data from level transmitters, temperature sensors, pressure gauges, and leak detection devices, presenting operators with real‑time dashboards. Automation enables predictive maintenance, reduces human error, and improves response times to abnormal conditions. However, implementing automation requires careful integration with existing infrastructure, cybersecurity safeguards, and staff training.

SCADA provides a centralized interface for operators to visualize tank levels, pressure trends, and alarm status across the entire tank farm. It allows remote control of pumps, valves, and venting devices, facilitating efficient product movement and rapid response to emergencies. SCADA systems can be configured to generate automatic notifications via email or SMS when critical thresholds are breached, ensuring that responsible personnel are alerted promptly. Data archiving within SCADA supports regulatory reporting and historical analysis.

PLC devices are rugged controllers that execute predefined logic for equipment such as loading arms, pump stations, and safety interlocks. PLCs are programmed using ladder logic or structured text, and they can communicate with SCADA systems using standard protocols like Modbus or OPC-UA. PLCs are essential for implementing safety instrumented functions (SIF) that meet SIL (Safety Integrity Level) requirements. For example, a PLC may monitor a high‑level sensor and, upon detection of an over‑fill condition, initiate an automatic valve closure and trigger an alarm.

Remote monitoring technologies enable off‑site personnel to access tank farm data through secure web portals or mobile applications. This capability is valuable for multinational operators who oversee multiple sites, allowing them to compare performance metrics, schedule maintenance, and respond to alarms without being physically present. Remote monitoring also supports predictive analytics, where historical data are analyzed to forecast equipment failures or identify trends in product loss.

Vapor space management involves controlling the volume and composition of gases above the liquid surface in a tank. Effective vapor space management reduces emissions, mitigates fire risk, and maintains product quality. Strategies include inert gas blanketing, pressure‑vapor control, and use of vapor recovery units. Operators must balance the need to keep the vapor space at a safe pressure while minimizing product loss through venting. Monitoring vapor composition with gas analyzers helps verify compliance with environmental limits.

Vapor pressure control devices such as pressure regulators, relief valves, and vent stacks are installed to maintain the vapor space within design limits. Pressure regulators reduce high inlet pressures to safe downstream levels, while relief valves protect against over‑pressurization. Vent stacks provide a controlled pathway for excess vapors to be safely released or routed to recovery systems. Proper sizing and placement of these devices are essential to prevent pressure spikes during rapid loading or temperature fluctuations.

Temperature compensation is necessary because product density and volume change with temperature. Most tank farms employ temperature sensors placed at the product surface and at multiple points within the tank to capture temperature gradients. The measured temperature is used to apply correction factors based on standard ASTM tables, converting observed volume to a reference temperature (usually 15°C or 60°F). Accurate temperature compensation is critical for inventory reconciliation and for meeting contractual specifications that stipulate volume at a standard temperature.

Product sampling is performed to verify that the incoming or outgoing product conforms to quality specifications. Sampling points are located at the inlet and outlet of loading racks, and samples are collected using automatic samplers or manual procedures. Samples are analyzed for parameters such as density, API gravity, sulfur content, water content, and flash point. Consistent sampling procedures ensure reliable data and support dispute resolution with suppliers or customers.

Pipeline integrity management encompasses the inspection, monitoring, and repair of pipelines that transport products between tanks, loading racks, and external facilities. Integrity programs include internal pigging, external corrosion monitoring, and pressure testing. Pipeline integrity is closely linked to tank integrity, as a failure in either component can cause a spill. Operators must maintain an up‑to‑date pipeline database, schedule regular inspections, and prioritize repairs based on risk assessments.

Loading arm design must accommodate product properties, transfer rates, and site constraints. Arms are typically articulated with swivel joints to provide flexibility and to compensate for vessel movement. Materials used for loading arms include carbon steel, stainless steel, and aluminum, selected based on compatibility with the product and exposure conditions. For highly volatile products, the arm may be equipped with a vapor recovery connection to capture displaced vapors during loading. Proper alignment and regular lubrication of swivel joints prevent binding and wear.

Transfer pump selection is driven by product viscosity, required flow rate, and pressure head. Centrifugal pumps are common for low‑viscosity products, while positive‑displacement pumps are preferred for high‑viscosity liquids such as heavy fuel oil or bitumen. Pump performance curves are evaluated to ensure that the pump can meet the desired capacity at the required suction and discharge pressures. Pump wear parts, such as impellers and seals, must be compatible with the product to avoid premature failure.

Filtration systems remove solid particles, sludge, and water droplets from product streams before they enter storage tanks or downstream processes. Filtration may involve coarse strainers, cartridge filters, or centrifuges, depending on the level of cleanliness required. For fuels destined for aviation, stringent filtration standards dictate the use of fine‑mesh filters to prevent nozzle clogging. Regular filter replacement and back‑washing schedules are essential to maintain flow and prevent fouling.

Product blending tanks are dedicated vessels used to combine different grades in precise proportions. Blending tanks are equipped with mixers, level control, and temperature regulation to achieve uniform composition. The blending process is monitored through real‑time sampling and density measurement, ensuring that the final product meets specification limits. Documentation of each blend batch, including source grades, volumes, and blending ratios, is required for traceability and quality assurance.

Tank cleaning verification involves confirming that a tank has been adequately cleaned before it is returned to service. Verification methods include visual inspection, swab sampling, and analytical testing for residual hydrocarbons or water. A common practice is to set a cleanliness standard, such as a maximum allowable residue concentration (e.G., 10 Ppm). If the tank does not meet the standard, additional cleaning cycles are performed until compliance is achieved.

Fire‑water network provides the supply of water for fire‑fighting operations throughout the tank farm. The network includes mains, hydrants, sprinkler heads, and pumps. Design considerations include adequate flow rate, pressure, and redundancy to ensure that water can be delivered to any location quickly. Regular testing of fire‑water flow, pressure, and pump performance is required to verify that the system meets fire‑protection standards.

Foam generation systems produce foam concentrate and water to create a blanket that smothers hydrocarbon fires. The foam system must be sized according to the maximum fire load, which is calculated based on the volume and flash point of the stored product. Foam concentrate storage, mixing ratios, and delivery pressure are carefully controlled to ensure effective fire suppression. Routine maintenance includes checking foam concentrate expiration dates, cleaning discharge nozzles, and verifying pump operation.

Emergency shutdown (ESD) logic is programmed into PLCs to execute predefined actions when an abnormal condition is detected. Typical ESD actions include closing isolation valves, de‑energizing pumps, activating fire‑water pumps, and disengaging loading arms. The logic incorporates interlocks that prevent inadvertent activation, such as requiring a simultaneous high‑level alarm and a pressure rise before initiating a shutdown. Testing of ESD logic is performed through simulated fault conditions to confirm correct sequencing.
